Install Kubernetes High Availabilty with Multi Master

Setup Multi Master Kubernetes Cluster with Kubeadm


Requirements:

  • kubernetes version 1.15.11
  • haproxy
  • docker

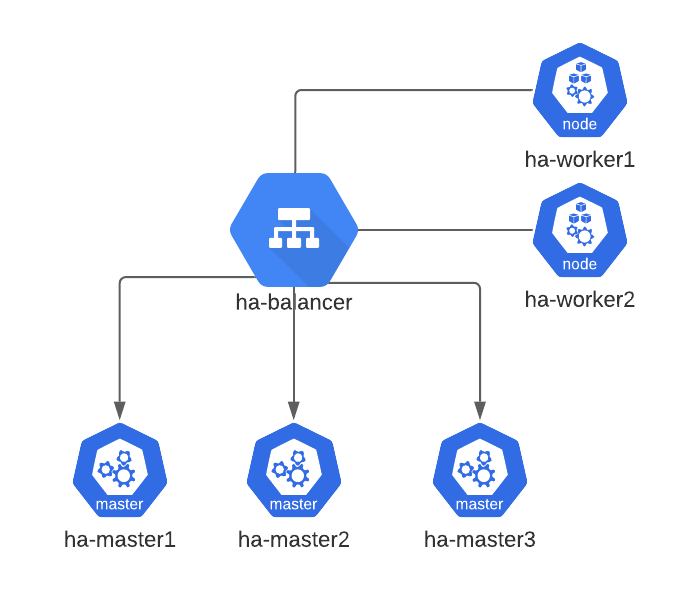

Node list:

  • ha-balancer 10.10.10.100
  • ha-master1 10.10.10.10
  • ha-master2 10.10.10.11
  • ha-master3 10.10.10.12
  • ha-worker1 10.10.10.20
  • ha-worker2 10.10.10.21

On all node execute this command

1

sudo apt update; sudo apt autoremove -y

Install docker package on

ha-master1, ha-master2, ha-master3, ha-node1, ha-node2

1

sudo apt install -y docker.io=18.09.7-0ubuntu1~18.04.4

1
2
3
4
5

cat > /etc/docker/daemon.json <<EOF
{
  "exec-opts": ["native.cgroupdriver=systemd"]
}
EOF

1

mkdir -p /etc/systemd/system/docker.service.d

Restart docker

1
2

systemctl daemon-reload
systemctl restart docker

Install kubectl, kubelet & kubeadm on all node master,

ha-master1, ha-master2, ha-master3

1

sudo apt install -y apt-transport-https; curl -s <https://packages.cloud.google.com/apt/doc/apt-key.gpg> | sudo apt-key add -

1
2
3

cat <<EOF | sudo tee /etc/apt/sources.list.d/kubernetes.list
deb <http://apt.kubernetes.io/> kubernetes-xenial main
EOF

1

sudo apt update; sudo apt install -y kubelet=1.15.11-00 kubeadm=1.15.11-00 kubectl=1.15.11-00

hold kubelet, kubeadm and kubectl

1
2

sudo apt-mark hold kubelet kubeadm kubectl
sudo systemctl enable kubelet

disable swap on master node and worker node

1
2

sudo swapon -s
swappoff -a

1
2
3
4

cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
.bridge.bridge-nf-call-ip6tables = 1
.bridge.bridge-nf-call-iptables = 1
EOF

1
2

sudo sysctl --system
sudo modprobe br_netfilter

Install and configure haproxy on node ha-balancer

1

sudo apt update; sudo apt install haproxy -y

1

sudo vim /etc/haproxy/haproxy.cfg

1
2
3
4
5
6

...
frontend kubernetes
bind 10.10.10.100:6443
option tcplog
mode tcp
default_backend kubernetes-master-nodes

1
2
3
4
5
6
7

backend kubernetes-master-nodes
mode tcp
balance roundrobin
option tcp-check
server ha-master1 10.10.10.10:6443 check fall 3 rise 2
server ha-master2 10.10.10.11:6443 check fall 3 rise 2
server ha-master3 10.10.10.12:6443 check fall 3 rise 2

1
2
3
4
5

frontend api_server_kubernetes
bind 10.10.10.100:8080
option tcplog
mode tcp
default_backend kube_api_server_kubernetes

1
2
3
4
5
6
7
8

backend kube_api_server_kubernetes
mode tcp
balance roundrobin
option tcp-check
server ha-master1 10.10.10.10:8080 check fall 3 rise 2
server ha-master2 10.10.10.10:8080 check fall 3 rise 2
server ha-master3 10.10.10.10:8080 check fall 3 rise 2
...

verification haproxy configuration

1

haproxy -c -V -f /etc/haproxy/haproxy.cfg

restart haproxy service

1

sudo systemctl restart haproxy

Generate SSH Key on

ha-master1

and then copy to other master node

1
2
3

sudo -i
ssh-keygen
cat /root/.ssh/id_rsa.pub

copy ssh key to other master

1
2

ssh-copy-id -i /root.ssh/id_rsa root@ha-master2
ssh-copy-id -i /root.ssh/id_rsa root@ha-master3

test ssh to ha-master2 and ha-master3

1
2

ssh 10.10.10.11
ssh 10.10.10.12

verification connection to

ha-balancer

1
2

nc -v 10.10.10.100 6443
nc -v 10.10.10.100 8080

initialitation on

ha-master1

1
2
3
4
5
6
7

vi config.yaml
...
apiVersion: kubeadm.k8s.io/v1beta2
kind: ClusterConfiguration
kubernetesVersion: v1.15.11
controlPlaneEndpoint: "10.10.10.100:6443"
...

1

kubeadm init --config=config.yaml --upload-certs

the results as below

1

You can now join any number of the control-plane node running the following command on each as root:

1
2
3

kubeadm join 10.10.10.100:6443 --token 71qkw2.ardnuukvwlvhugbt \\
    --discovery-token-ca-cert-hash sha256:a8fad41061a6fb20207ebc3fabb5da65cf5dc397ef97c39ce6dc8f62863e5242 \\
    --control-plane --certificate-key 6cd223990b20aefad2c394f3217ef9cc10c8625d33f3a8b91bf7da8cad5db74a

1
2
3

Please note that the certificate-key gives access to cluster sensitive data, keep it secret!
As a safeguard, uploaded-certs will be deleted in two hours; If necessary, you can use
"kubeadm init phase upload-certs --upload-certs" to reload certs afterward.

1

Then you can join any number of worker nodes by running the following on each as root:

1
2

kubeadm join 10.10.10.100:6443 --token 71qkw2.ardnuukvwlvhugbt \\
    --discovery-token-ca-cert-hash sha256:a8fad41061a6fb20207ebc3fabb5da65cf5dc397ef97c39ce6dc8f62863e5242

1
2
3

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

1
2
3

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

Deploy network CNI, this tutorial we willl use

weave network

1

kubectl apply -f "<https://cloud.weave.works/k8s/net?k8s-version=$>(kubectl version | base64 | tr -d '\\n')"

on

ha-master2

and

ha-master3

join cluster to ha-master1

1
2
3

kubeadm join 10.10.10.100:6443 --token 71qkw2.ardnuukvwlvhugbt \\
    --discovery-token-ca-cert-hash sha256:a8fad41061a6fb20207ebc3fabb5da65cf5dc397ef97c39ce6dc8f62863e5242 \\
    --control-plane --certificate-key 6cd223990b20aefad2c394f3217ef9cc10c8625d33f3a8b91bf7da8cad5db74a

on ha-worker1 and ha-worker2 join cluster as worker node

1
2

kubeadm join 10.10.10.100:6443 --token 71qkw2.ardnuukvwlvhugbt \\
    --discovery-token-ca-cert-hash sha256:a8fad41061a6fb20207ebc3fabb5da65cf5dc397ef97c39ce6dc8f62863e5242

verification nodes ready

1
2
3
4
5
6
7

kubectl get nodes
NAME         STATUS   ROLES    AGE    VERSION
ha-master1   Ready    master   5d3h   v1.15.11
ha-master2   Ready    master   5d3h   v1.15.11
ha-master3   Ready    master   5d3h   v1.15.11
ha-worker1   Ready    <none>   5d3h   v1.15.11
ha-worker2   Ready    <none>   5d3h   v1.15.11

verification all pods running

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

kubectl get pods -n kube-system
NAME                                 READY   STATUS    RESTARTS   AGE
coredns-66bff467f8-ffhz9             1/1     Running   0          5d3h
coredns-66bff467f8-w2lcw             1/1     Running   0          5d3h
etcd-ha-master1                      1/1     Running   0          5d3h
etcd-ha-master2                      1/1     Running   0          5d3h
etcd-ha-master3                      1/1     Running   0          5d3h
kube-apiserver-ha-master1            1/1     Running   0          5d3h
kube-apiserver-ha-master2            1/1     Running   0          5d3h
kube-apiserver-ha-master3            1/1     Running   0          5d3h
kube-controller-manager-ha-master1   1/1     Running   1          5d3h
kube-controller-manager-ha-master2   1/1     Running   0          5d3h
kube-controller-manager-ha-master3   1/1     Running   1          5d3h
kube-proxy-245hd                     1/1     Running   0          5d3h
kube-proxy-4ckq2                     1/1     Running   0          5d3h
kube-proxy-m62hj                     1/1     Running   0          5d3h
kube-proxy-rpl5t                     1/1     Running   0          5d3h
kube-scheduler-ha-master1            1/1     Running   2          5d3h
kube-scheduler-ha-master2            1/1     Running   0          5d3h
kube-scheduler-ha-master3            1/1     Running   0          5d3h
weave-net-4lkbs                      2/2     Running   2          5d3h
weave-net-526gt                      2/2     Running   2          5d3h
weave-net-bxvkk                      2/2     Running   0          5d3h
weave-net-ts2m2                      2/2     Running   0          5d3h
weave-net-bgsw4                      2/2     Running   0          5d3h

check cluster info

1
2
3

# kubectl cluster-info
Kubernetes master is running at <https://10.10.10.100:6443>
KubeDNS is running at <https://10.10.10.100:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

root@ha-master1:~# kubectl get endpoints kube-scheduler -n kube-system -o yaml
apiVersion: v1
kind: Endpoints
metadata:
  annotations:
    control-plane.alpha.kubernetes.io/leader: '{"holderIdentity":"ha-master2_327fadbe-ec94-43bb-8076-9a1aafa57cd3","leaseDurationSeconds":15,"acquireTime":"2020-10-04T06:25:34Z","renewTime":"2020-10-04T11:06:30Z","leaderTransitions":2}'
  creationTimestamp: "2020-09-29T07:05:42Z"
  managedFields:
  - apiVersion: v1
    fieldsType: FieldsV1
    fieldsV1:
      f:metadata:
        f:annotations:
          .: {}
          f:control-plane.alpha.kubernetes.io/leader: {}
    manager: kube-scheduler
    operation: Update
    time: "2020-10-04T11:06:30Z"
  name: kube-scheduler
  namespace: kube-system
  resourceVersion: "1380211"
  selfLink: /api/v1/namespaces/kube-system/endpoints/kube-scheduler
  uid: 5c15a8ad-a5fa-4d17-8416-0c97aff0cfe9

create example pod

1
2

root@ha-master1:~# kubectl run nginx --image=nginx
pod/nginx created

1
2
3

root@ha-master1:~# kubectl get pods
NAME    READY   STATUS    RESTARTS   AGE
nginx   1/1     Running   0          18s

Thanks.

This post is licensed under CC BY 4.0 by the author.
